PrestaShop

Introduction

Our PrestaShop plug-in comes with regular updates and full integration support, offering a versatile out-of-the-box solution to accept online payments in your shop easily:  

• Implements Lightening Mode to go live with 1 click (all settings chosen by default).
• Supports both Hosted Checkout Page and Hosted Tokenization Page integration method.

Offers the following payment methods on our platform:

Alipay+
American Express
Apple Pay
Bank Transfer by Worldline
Diners Club
EPS
Google Pay
iDEAL
Klarna Bank Transfer
Klarna Direct Debit
Klarna Financing
Klarna Pay Later
Klarna Pay Now
Maestro
Mastercard
PayPal
Przelewy24
Visa
WeChat Pay

• Manages multiple stores.
• Accepts payment operations (Refunds, authorisations, captures etc.) directly from your PrestaShop Back Office.

Keep an eye on our changelog to stay informed about updates and new features (i.e. payment methods, features, integration methods) we have added to this plugin!

Check out our documentation to learn how to link your store with our platform to profit from  all these features! 

Download plugin

GitHub repository

Account Creation

To process transactions with this plugin, you need an account on our platform.

This plugin works with both our test and live environment. A test account is a great way to get familiar with both the plugin and our platform. Once you want to go live, create a production account or contact us!

Installation

The first step to use the plugin is the installation process. Before you proceed, make sure your infrastructure meets these system requirements:

Item	Description
Plugin package	Download the plugin
PAYONE E-Payment credentials	Active test/live account on our platform API key/secret Webhooks
PrestaShop	This plugin supports PrestaShop versions: v1.7.0+ The plugin has been tested against and up to PrestaShop v1.7.7.8
PrestaShop Prequisites	No technical prerequisite on your hosting is required (greater than to run the Prestashop version mentioned)µ. cURL library should be available Make sure to grant permissions in this directory . “/modules” The PrestaShop Back Office will upload module on this standard PrestaShop directory while installing Worldline Online Payment: need access rights 755.
PCI compliancy	SAQ A The plugin’s in-built features ensure this security level, but you still need to get the certificate from your acquirer.

Once done, follow these steps:

1. Login to the PrestShop Back Office. Go to IMPROVE > Modules > Module catalog. Click on "Upload a module" and upload the zip-file.
2. The installation process starts automatically. Once done, you can configure the plugin.
3. Click on the "Configure" button to start the configuration process. This configuration page allows you to configure the generic parameters of the store, in particular if you are setting it up in a "multistore" context.

If you which to install the module via FTP instead, followed these steps:

1. Unzip the PrestShop module zip file.
2. Upload the whole file "worldlineop" via FTP file in file directory <yourdomain>/modules.
3. Login to the PrestShop Back Office. Go to IMPROVE > Modules > Module catalog. Look up "worldline online payment" in the search bar.
4. The module pops up as a search result. Click on "Install" button to continue with the standard installation process.

Configuration

After the installation, you need to configure the plugin to link your store to our platform.

Configure basic settings

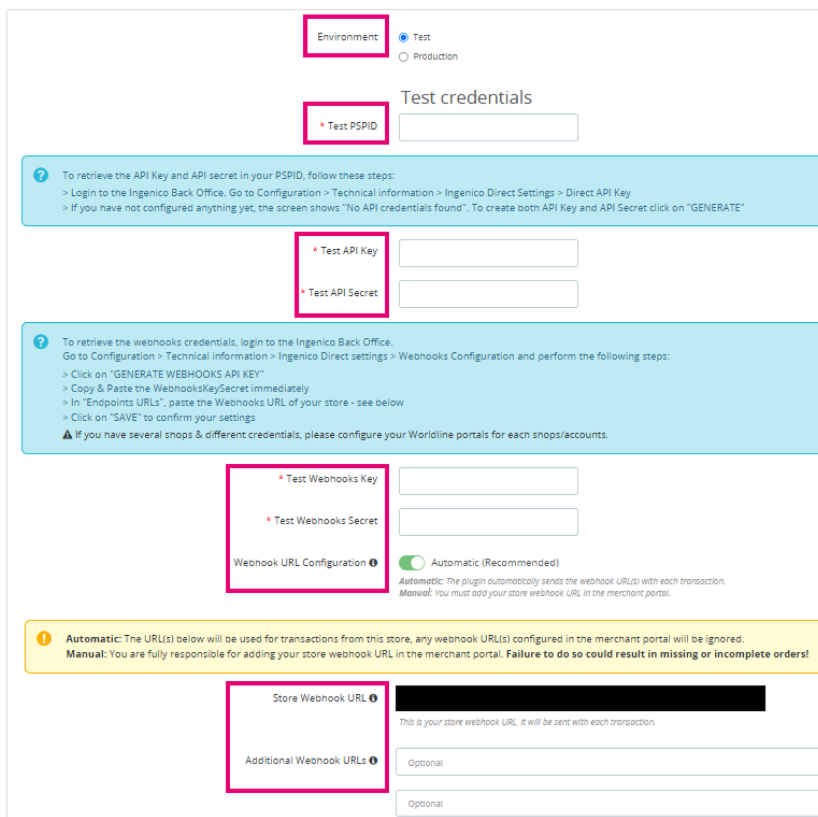

1. Login to the PrestaShop Back Office. Go to IMPROVE > Modules > Module Manager > Payment. Click on "Configure" next to "Worldline Online Payments".
2. Go to "MY ACCOUNT" tab and configure the following settings:

   Property	Description/Actions
   Environment	Select between 'Test' or 'Production' to link your shop to the respective environment. Depending on your selection, the shop module will send the transaction requests to the test or production environment. Make sure to Not to mix up credential from test with live and vice versa when configuring fields PSPID/API and webhooks credentials. To switch to 'Production' as soon as you have finalised your tests.
   Test/Prod PSPID	Enter your PSPID from our platform that you want to use for transaction processing.
   Test / Prod API Key	Enter the API key of your test or live PSPID. Read our dedicated guide to learn how to generate one.
   Test / Prod API Secret	Enter the API secret of your test or live PSPID. Read our dedicated guide to learn how to generate one.
   Test / Prod Webhooks Key	Enter the webhooks Key of your test or prod account as described in our dedicated guide.
   	Enter the webhooks Secret of your test or prod account as described in our dedicated guide.
   Webhooks URL	Copy this URL into the Endpoint URLs fields in your account as described in our dedicated guide.

1. Click on "Save" if you just want to store your credentials only. Click on “Save & Check credentials”. Make sure the message "Account credentials are valid. Account settings saved successfully." appears.
2. Go to IMPROVE > Payment > Preferences. Link the Worldline Online Payments with user groups, carriers, countries and currencies according to your business logic.
3. Got to CONFIGURE > Advanced parameters > Email. If you want to send e-mails to confirm orders, make sure PrestaShop sends them correctly. Use the "Test your email configuration" to do so.

Your plugin is now ready to process payments on our platform!

If you wish to make some optional advanced customisations to optimise your customers’ payment experience, check out our dedicated paragraph what is possible. Do you need to fix issues you encountered during the installation/configuration process? Check our dedicated troubleshooting paragraph.

Configure advanced settings

We have designed our PrestaShop plugin to guarantee you a quick and easy way for transaction processing. The following settings are optional, but you might use them to optimise your customers’ payment experience and to adapt to business requirements.

To do so, follow these steps:

1. Login to the PrestaShop Back Office. Go to IMPROVE > Modules > Module Manager > Payment. Click on "Configure" next to "Worldline Online Payments".
2. Make sure "Show advanced settings" is set on YES. Go the "ADVANCED SETTINGS" tab and configure the following settings:



   Property	Description/Actions
   Transaction Type	Define whether to process the transactions as authorisation mode or as direct sale. Select one of the following options: Immediate (Authorization + Capture): The amount has been ordered to be paid out in one go. Use this mode to receive the money before shipping the order There are no further actions required to capture the transaction. Successful transactions will have status="CAPTURED" / statusOutput.statusCategory="COMPLETED" / statusOutput.statusCode=9 Authorized (Authorization Only): the amount is only blocked on your customer's card. Successful transactions will have status="PENDING_CAPTURE" / statusOutput.statusCategory="PENDING_MERCHANT" / statusOutput.statusCode=5 (Use this mode when you wish to capture a transaction only after shipping the order) If you select "Authorized", also configure the following: Delay before payment capture: You can set the capture delay of X days in the given field. At the end of this duration, a cron job will capture the transaction automatically. If the transaction is partially captured already in the meantime, any available funds that remain will be captured. Capture cronjob: Copy the cron command from the plugin and paste it in your PrestaShop core for it to auto execute. If transaction type is set to Authorized , beware of the following: Make sure that you capture authorised transaction later. Only then will the transaction have status="CAPTURED" / statusOutput.statusCategory="COMPLETED" / statusOutput.statusCode=9, for which you receive the actual payment for the transaction. Even if the capture delay is set to X days, you can also manually capture funds fully / partially by opening an individual order once you have delivered the goods/services.
   Enable Advanced Logging	If you are in debug mode and need additional logs for troubleshooting, enable this setting. Download any available logs right here.
   Payment Flow Modification	We strongly recommend leave the settings as-is to guarantee safe transaction processing: Payment accepted status mapping: Map successful transaction statuses according your business logic. Pending payment status mapping: Map pending transaction statuses according your business logic. Payment error status mapping: Map unsuccessful transaction statuses according your business logic. Release inventory from Pending payment orders after: For any orders in an unknown status, select the time frame after which an automatic cron job will delete the order in the PrestaShop and on our platform. Pending Order Cronjob: Copy the cron command from the plugin and paste it in your PrestaShop core for it to auto execute. Force 3DsV2: (De)activate the 3-D Secure check. We strongly recommend setting it to YES to avoid a high rate of declined transactions. This mapping relates only to PrestaShop transaction statuses. The PAYONE E-Payment statuses are unaffected by this setting.

3. Click on "Save" to confirm your settings.
4. Go the "PAYMENT METHODS" tab and configure the following settings:

REDIRECT MODE (ALL PAYMENT METHODS)	Description/Actions
Payment method selection after redirect	Adapt the payment experience/payment method selection process on the PrestaShop checkout page for the Redirect mode. YES: Upon clicking clicking "PLACE ORDER" on the Prestashop checkout page, the plugin redirects your customers to our Hosted Checkout Page. Each available payment method is listed individually there. NO: The plugin lists each available payment method on the PrestaShop checkout page. Upon clicking "PLACE ORDER", the plugin redirects your customers to our Hosted Checkout Page, which will be branded according to the selected payment method. This works only if "Payment method selection before redirect" set to YES.
Pay button title	Customise the radio button text on the PrestaShop checkout page.
Payment method selection before redirect	Adapt the payment experience/payment method selection process on the PrestaShop checkout page YES: The plugin lists each available payment method on the PrestaShop checkout page you have set to "YES". This allows you to make certain payment methods unavailable to your customers, even if they are active in your account. Click on "Refresh list of available payment methods" to retrieve all active payment methods from your account, especially after you have active new ones. NO: Upon clicking clicking "PLACE ORDER" on the Prestashop checkout page, the plugin redirects your customers to our Hosted Checkout Page. Each available payment method is listed individually there. This works only if "Payment method selection after redirect" set to YES.
Template filename for redirect payment	Enter the file name of your template to adapt our payment page to the look and feel of your shop. To learn how to create templates, see our dedicated chapters in the !{dv.get('direct.hostedCheckoutPaymentPage')}.

ONE PAGE CHECKOUT MODE (CARDS ONLY)	Description/Actions
	Adapt the payment experience/payment method selection process on the PrestaShop checkout page. Use the One page checkout mode for all credit card payment methods active in your account. All card brands are bundled together within one payment choice. Your customers enter their card credentials in an iframe directly on the PrestaShop checkout page. NO: Use the Redirect mode for all credit card payment methods active in your active in your account. This works only if either "Payment method selection after redirect" / or “Payment method selection before redirect” set to YES.
Pay button title	Customise the payment button text in iframe on the PrestaShop checkout page.
Logo displayed on your payment page	Display a logo process on the PrestaShop checkout page.
Payment methods available	Click the button to retrieve all active payment methods from account that the hosted iframe on the PrestaShop checkout page accepts. Mind that this button is for information purposes only, as our platform will always accept all active credit card payment methods in your account.
Template filename	Enter the file name of your template to adapt the iframe to the look and feel of your shop. To learn how to create templates, see our dedicated chapters in the Hosted Tokenization Page guides.

1. Click on "Save" to confirm your settings.

The image above shows the customizable radio button text on the PrestaShop checkout page.
The image above shows uploaded logo how it appears on the PrestaShop checkout page.

Troubleshoot errors

If you encounter issues during the installation/configuration process or when using the plugin, have a look at the following list of possible solutions:

• Use the PrestaShop standard log feature (CONFIGURE > Advanced Parameters > Logs) to solve problems related to user access rights and time outs.
• Activate debug mode via CONFIGURE > Advanced Parameters > Performance > Debug mode to get more information on possible errors.
• Get additional logs via IMPROVE > Modules > Module Manager > Payment > ADVANCED SETTINGS > Payment Settings > Enable advanced logging.
• Check that the module is correctly hooked to solve missing/malfunctional blocks in the PrestaShop Back Office or Front Office. Go to IMPROVE > Design > Positions. Select "Worldline Online Payments" in "Show" dropdown menu to confirm that:
  • "Display non-positionable hooks” is flagged".
  • The list of the following hooks is present.

    actionAdminControllerSetMedia
    actionFrontControllerSetMedia
    actionOrderStatusPostUpdate
    customerAccount
    displayAdminOrderLeft
    displayAdminOrderMainBottom
    displayBackOfficeFooter
    displayHeader
    displayPaymentByBinaries
    displayPaymentTop
    displayPDFInvoice
    orderConfirmation
    paymentOptions

    If a hook is missing, go to IMPROVE > Design > Positions. Select "Wordline Online Payments" from dropdown menu "Module" and add the missing hook in field "Transplant to".

Manage payments

We have designed the plugin to follow-up on your orders automatically and autonomously, freeing you from the administration involved. Learn here how to use our plugin effectively which could help your business to thrive!

Perform maintenance operations

Captures, refunds and cancellations of authorisations are standard processes (maintenance operations) in your everyday business logic. Learn here how to perform these operations directly in the PrestaShop Back Office:

• Login to the PrestShop Back Office. Go to Sell > Order Settings > Order Settings. Click on the order in the table.
• In the order overview, go to "Worldline Online Payments". Depending on the transaction’s current status, you can capture/cancel/refund by clicking on the respective button.

Perform test transactions

Use our platform's test environment to make sure your plugin works as intended. We offer test data sets on our dedicated Test cases page. Target our test environment as described in the "Configure Plugin" section.
